AB300 Vertical Platform Lift

We are excited to announce the introduction of the AB300 to our product range!


"Silence and reliability - this is what the AB300 is oferring." David Hobbs - Director of KEP Lifts

Some technical features, that makes our AB300 so silent:

  • Patented lifting system that works especially quiet
  • There is no vibration – rubber rollers and belts eliminates any possible vibration
  • Guide rollers made from rubber – it absorbs sounds during platform movement
  • Lifting gear based on belts. Belts made of steel ropes and rubber
  • 2 x 100mm belts width
  • Motor and gearbox made special for this type of lift
  • Guide rails made from aluminum
  • Patented safety locking system
  • Soft start/stop function – our unique’s software result


Additional information

Design

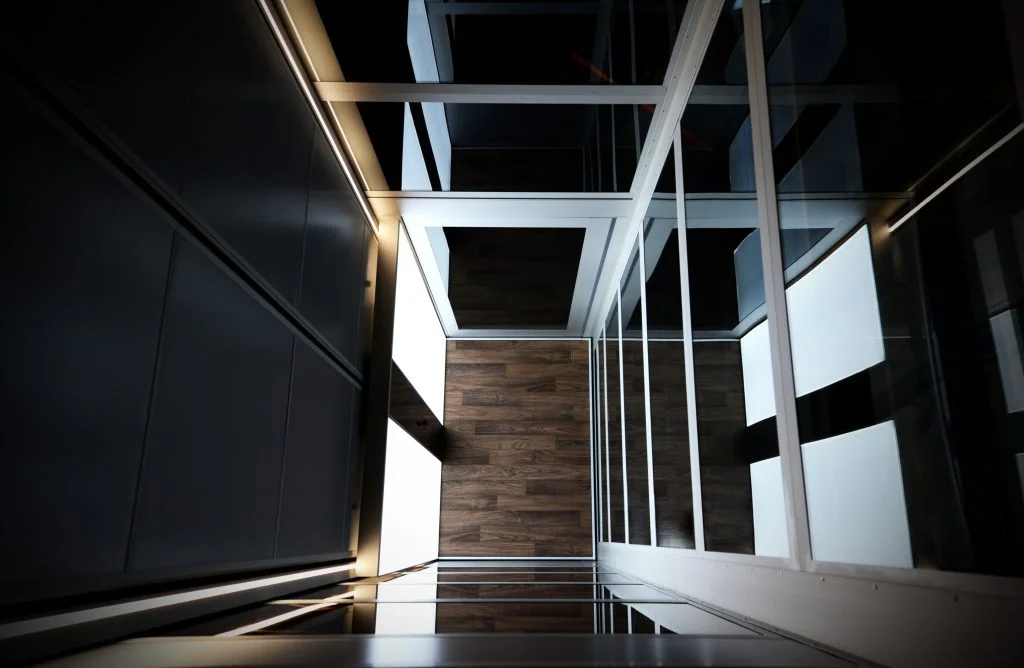

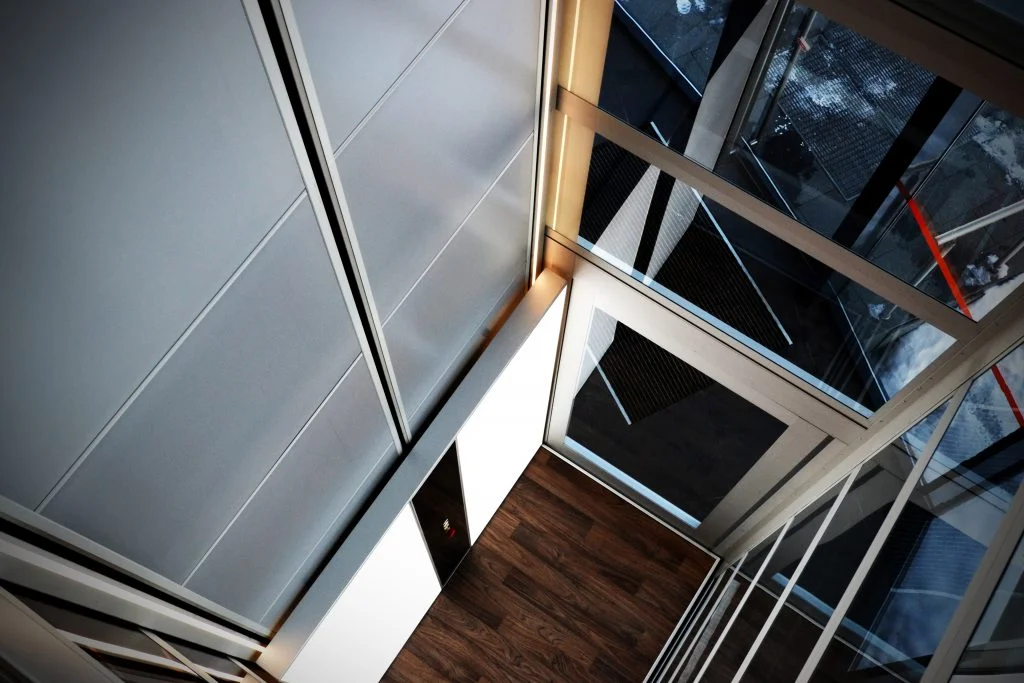

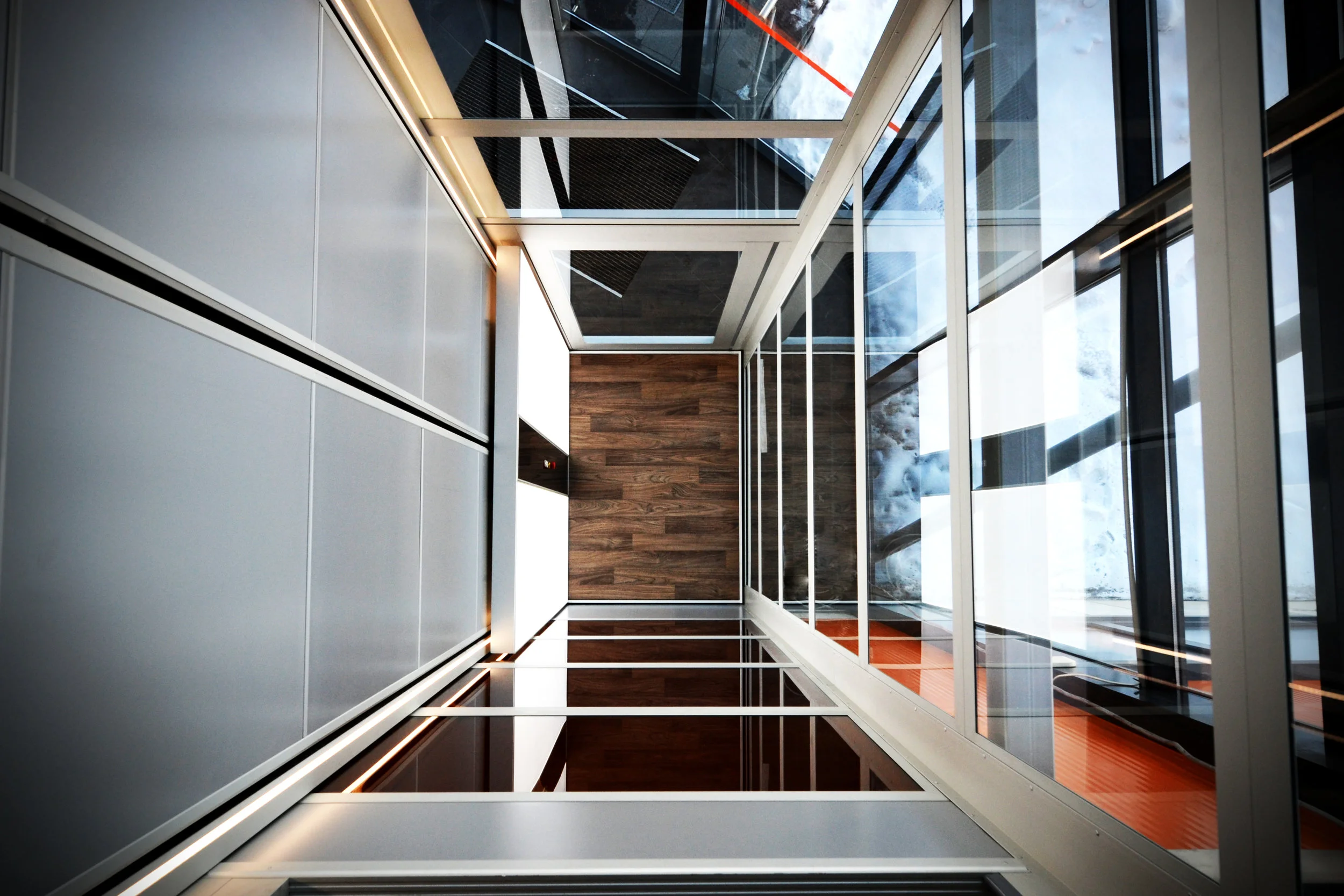

The operation principle of AB300 is based on the double belt system. The engine is mounted on the top of the guides and rotates a belts, this way lifting the platform. The shaft is constructed on the basis of an anodized aluminium frame interconnected with the panels of a client’s choice. Multi-layered sandwich panels and laminated glass panels come as a standard. A maximum of three doors may be installed on each floor with either left or right swing. The doors on the top floor stop may be designed in the form of gates. This type of construction looks aesthetic and modern and gives a clear view of the surroundings. At the request of the client, the platform and panels may be painted in any RAL scale colour. AB300 is a standard colour RAL9006 (white aluminium).

Application

AB300 is designed for a comfortable use by all categories of passengers, including the elderly and people with limited mobility. Our platform lift fits perfectly both in the interior of buildings, and in a variety of external architectural styles even, in some cases, improving the aesthetics of buildings. In the case of internal installation, AB300 has all the essential qualities of a platform lift: minimum overall dimensions, no pit and machine room, silent operation and low energy consumption. AB300 may be installed in libraries, museums, hospitals, schools, airports, railway stations, above ground and underground passages or parking. Our lifts are widely used in private houses, cottages and apartment buildings. AB300 is durable and unpretentious in service, adaptable to different standards of power sources and can withstand large power surges.

Comfort

The absence of the lift cabin in AB300 lets us make a spacious and light platform. A standard platform (1,485 x 1,070 mm) ensures a comfortable journey for a person with a wheelchair and his attendant. The control of the platform is very simple and intuitive, with a stable system to incorrect commands or its consequences. A passenger may stop and resume the movement at any time of the trip and even change the lift’s moving direction. The beginning and the ending of the lifting process are performed in very smooth easing algorithms and don’t evoke any uncomfortable feelings for sensitive people. A uniformly back light control panel, with a comfortable handle below, contains large buttons with embossed symbols at a convenient height for access from sitting or standing positions.


LED lighting

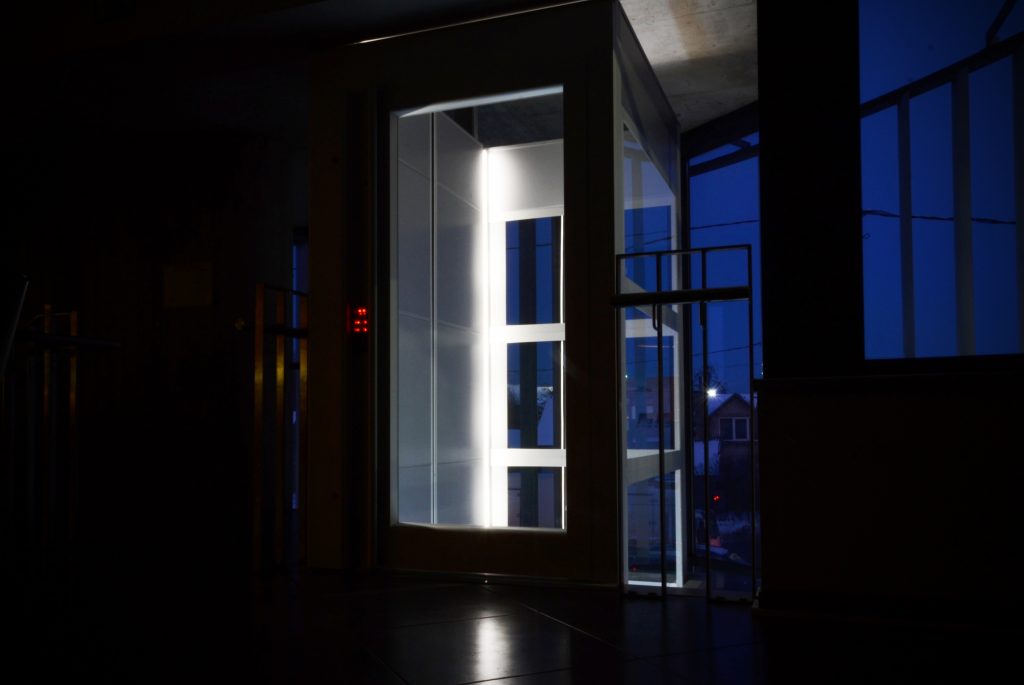

We use the latest LED technology for the lighting of AB300 as it is cost-effective, durable and has a wide palette range. The sets of a large number of LED elements provide uniform illumination and an excellent aesthetic appearance. Energy saving LED lighting may stay on for a long time even in case of an emergency power failure. A backup battery installed on the platform may keep the necessary level of lighting for a couple of hours. Concept lift AB300

Anti-slip floor surface

The platform floor cover is made of rough anti-skid material, which is highly adhesive and abrasion resistant. The floor coating material may contain logos, promotional materials or pictures according to our clients’ needs.

Innovation

The vertical platform lift AB300 combines time-tested design solutions and new approaches to electronic control and fault diagnosis. By using the highest quality materials and components, our task is to increase the longevity of the lift and to minimize the downtime associated with troubleshooting and maintenance. The elevator control system can be equipped with a special diagnostic module that provides the detailed information on the status of all platform nodes and system sensors. The module informs about the usage of AB300, including the number of lifts and trip distances. It also enables the performing and adjustments of the lift operating settings, including speed and smoothness, the height of stops, lock closing time, button modes and much more.


Cost efficiency

The maximum efficiency of AB300 is achieved by using lighter materials, power saving lighting technologies and selecting a specific electric drive. The electric drive of the lift is constructed on the basis of an electronic frequency converter, which has the best characteristics of power consumption compared to directly connected motors, and enables the adjustment of the speed and smoothness of movement. AB300 lifts come with either a three-phase or single-phase frequency converter, depending on the capabilities of the present electrical circuit and intensiveness of lift usage. The frequency converter always provides the engine with the most optimal energy supply and prevents any energy wastage at the same time adapting to the grid voltage drops.

Security

The product reliability is the feature which is beneficial to both consumers and manufacturers. Long-term testing has shown that even after 50,000 cycles and more than 600,000 meters of travel the amortization of the main gear was hardly recognizable. The control system of AB300 lift has passed stringent tests on the impact of the strong external electrical interference and received a certificate of electromagnetic compatibility (EMC). Technical maintenance service performed a general analysis on the lift design and its schematic solutions, in order to identify any possible weaknesses in security, and came to the conclusion that all measures are fully implemented, confirming the certificate of conformity. The security measures implemented in the AB300, comply with one of the most stringent European standard EN81-41: 2010. SB-200 always stops at an exact indicated position thanks to the triple braking torque system:

Electromechanical brake inside the motor

Electromechanical brake on the guides, executed by patented technology.

In case of emergency situations the lift mechanism is supplied with a manual emergency descent. Optionally, the emergency lowering mechanism may be actuated by an electric motor with a backup battery.



Technical Specifications

Drive system: 2xBelt drive

Nominal load: 400 kg / 5 persons

Lifting speed: 0.15 m/sec (9 m/min)

Lifting height: Up to 8 metersNumber of stops (floors)Up to 5

Platform dimensions: (length x width, mm)
*other dimensions available

1100 x 1400
1070 x 1485
1150 x 1485

Shaft dimensions: (length x widths, mm)

1500 x 1460
1460 x 1540
1540 x 1540

Dimensions of the doors: (width x height, mm)
*other dimensions available

900 x 2000 (when platform is 1100 x 1400)

940 x 2000

Dimensions of the gate: (width x height, mm)

900 x 1300 (when platform is 1100 x 1400)
940 x 1300

Configuration of the doors: Opens from left or right side, up to 3 doors per floor.

Shaft walls: Steel or tempered glass panels.

Standard colors:
*the lift can be painted in any RAL colorRAL 9010 (pure white) (for special price)
RAL 9006 (light grey aluminum)

Soft START/STOP: Standard equipment

Power supply: 220-230 V, 1 Ph, 25A

380-400 V 3 Ph, 16A, 50 or 60 HzEngine2.2 kW

Noise level: Less than 70 dB

Control system: Micro controler

Safety equipment: Protective edge around the platform, emergency braking buttons inside the platform and in the shaft, emergency stop switches, electronic speed control, overload detectors, door opening and lock control, belt tier sensors, electronic engine management

Conformity of the European Standard EN81-41: 2010

*For other dimensions please contact our consultant.
